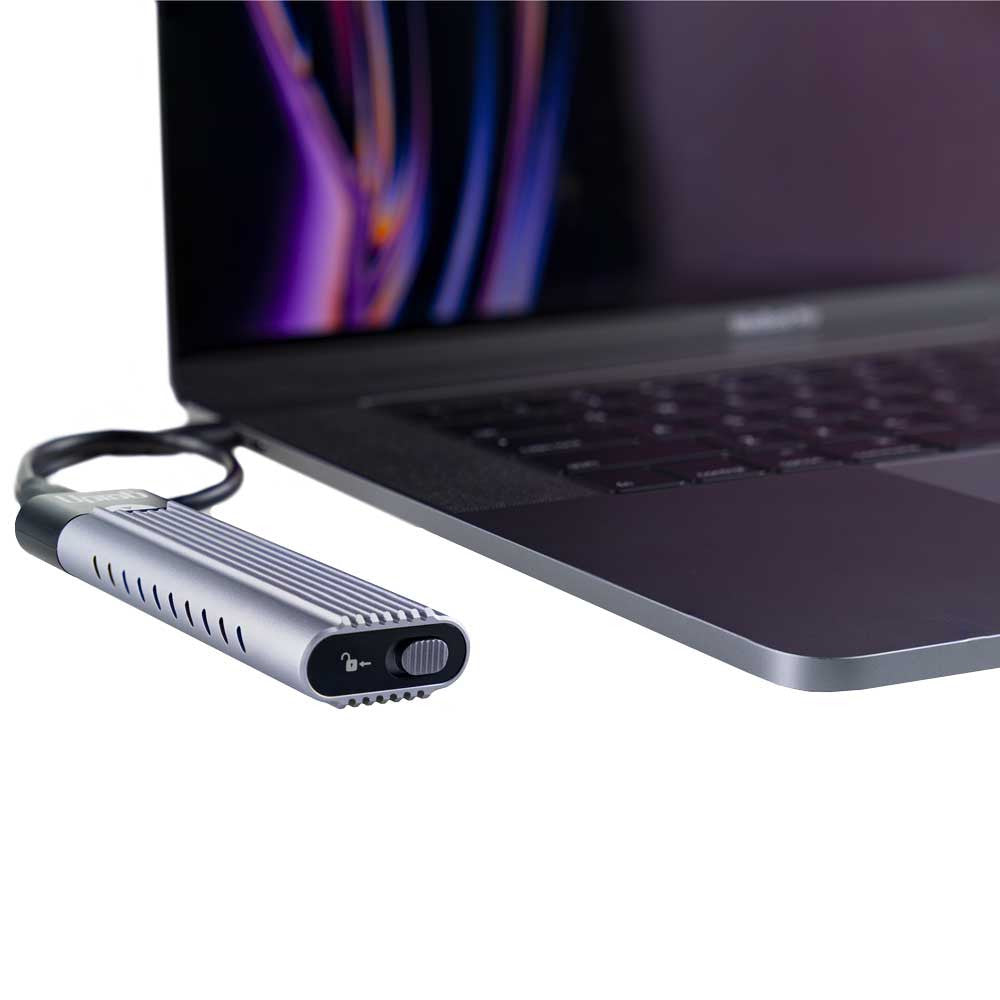

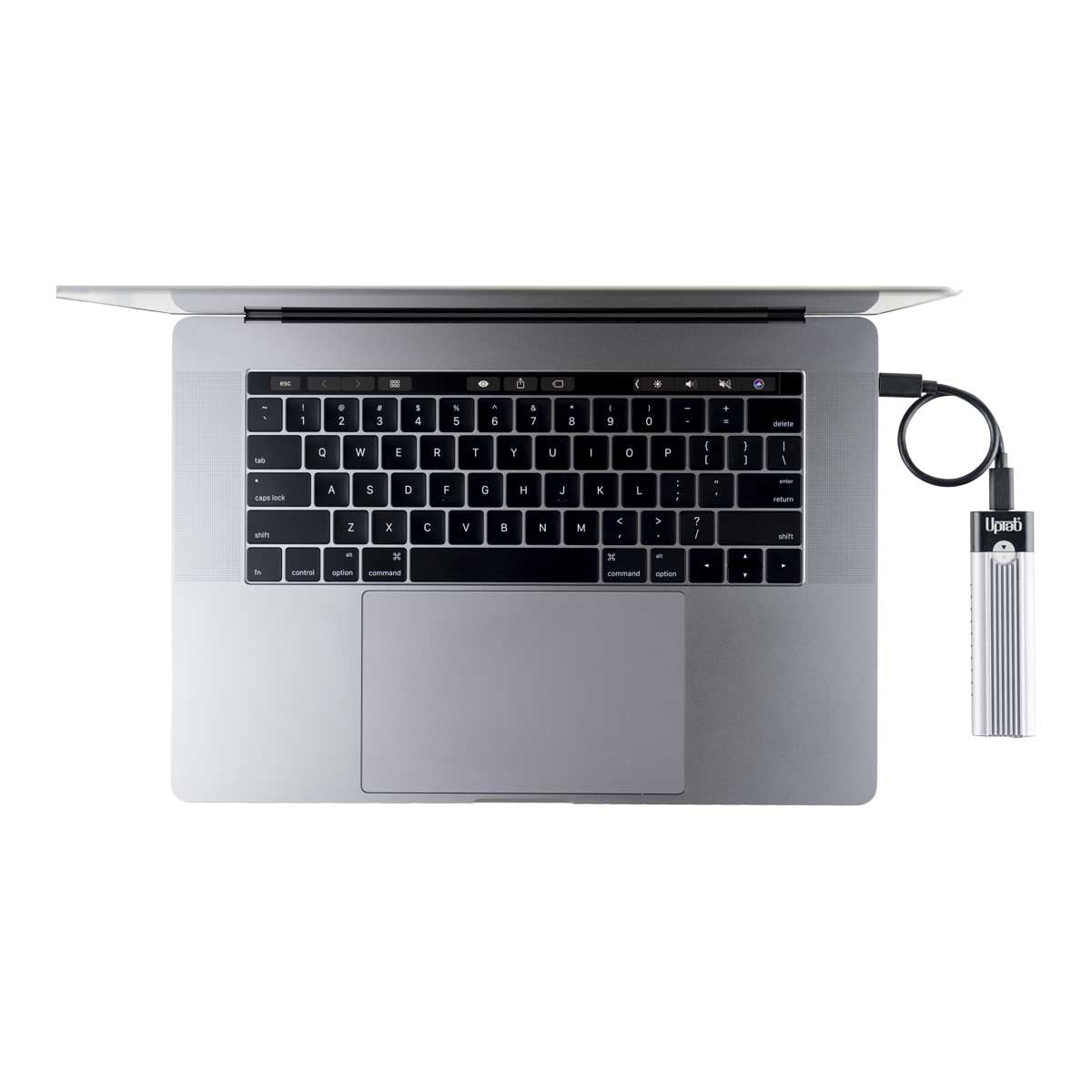

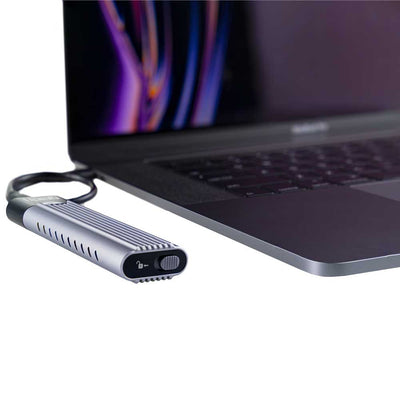

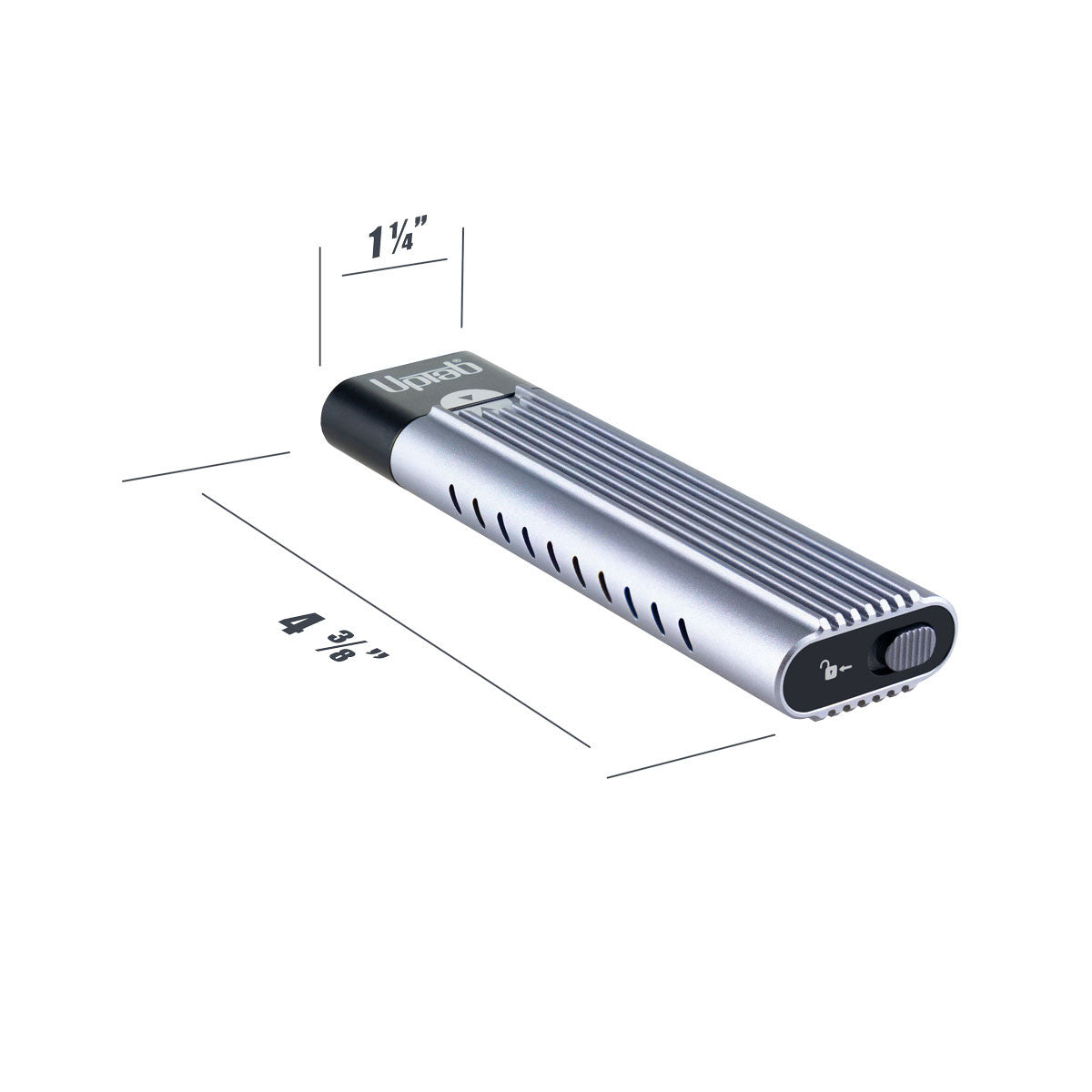

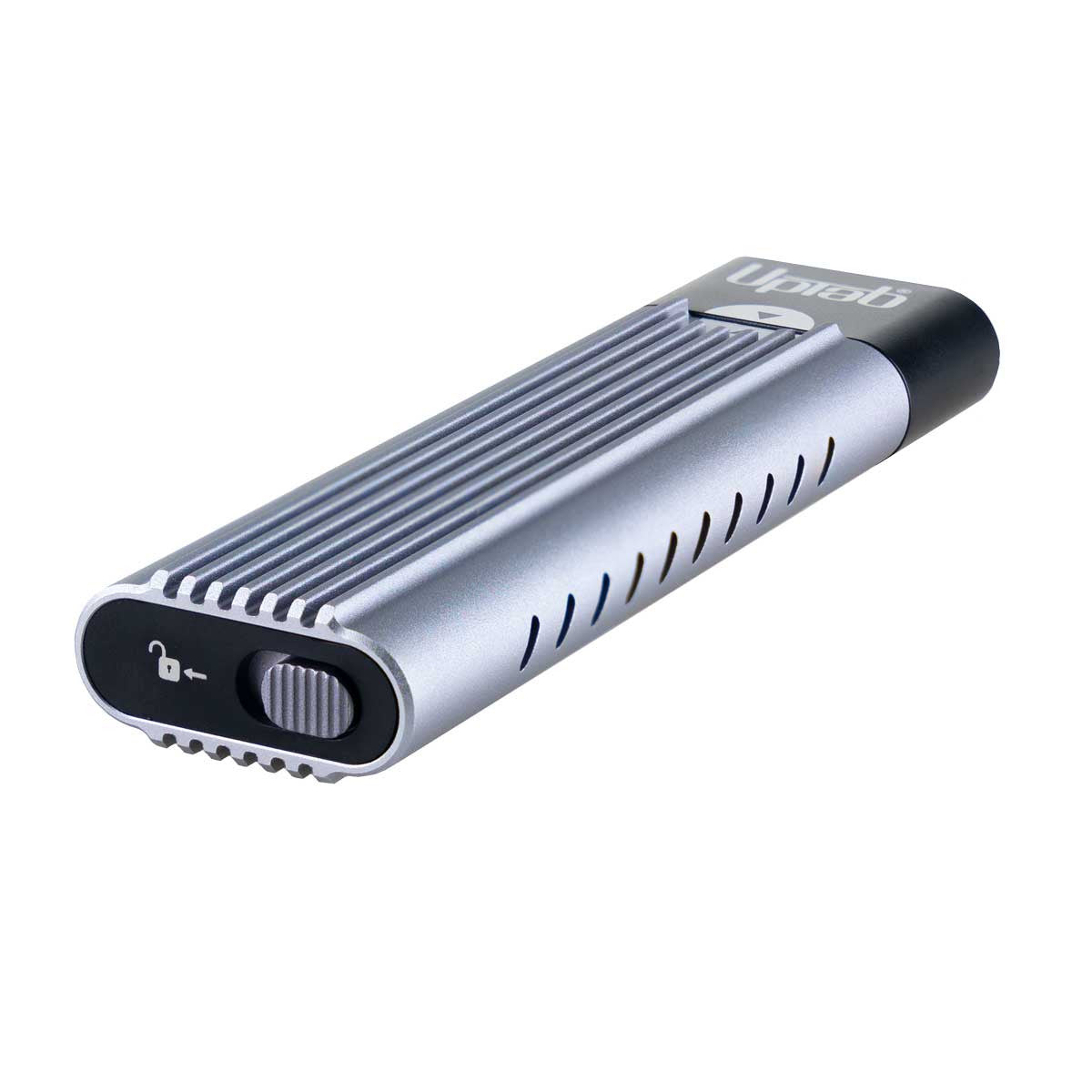

The USB-C Enclosure delivers NVMe performance in a portable format, enabling users to convert any PCIe M.2 M solid-state drive into a compact, high-speed storage solution. Its lightweight aluminum construction and grooved heat-sink design mitigate thermal issues common in small form-factor SSDs, ensuring sustained peak performance under intensive workloads.

Equipped with USB-C connectivity, the enclosure provides near-instant access to up to 2 TB of data in any location. Compatibility with 80 mm, 60 mm, and 42 mm M.2 M form factors, operating system independence, and a fully bus-powered design enhance versatility.

Ideal for high-speed storage, data backup, drive cloning, and mobile operating system deployment, the USB-C Enclosure supports rapid data transfer and maximum performance. Its portability makes it suitable for professional environments—such as meetings and project reviews—as well as personal use.

Highlights:

• Portable NVMe speeds
• Durable, lightweight aluminum casing
• USB-C connectivity
• Near-instant access to up to 2TB of data anywhere
• Heat-sink design combats high heat issues
• Compatible with 80mm, 60mm, 42mm M.2 M form factors
• Offers a variety of uses, including high-speed storage
• Turns any PCIe M.2 M solid-state drive into an ultra-portable pocket drive

Specifications:

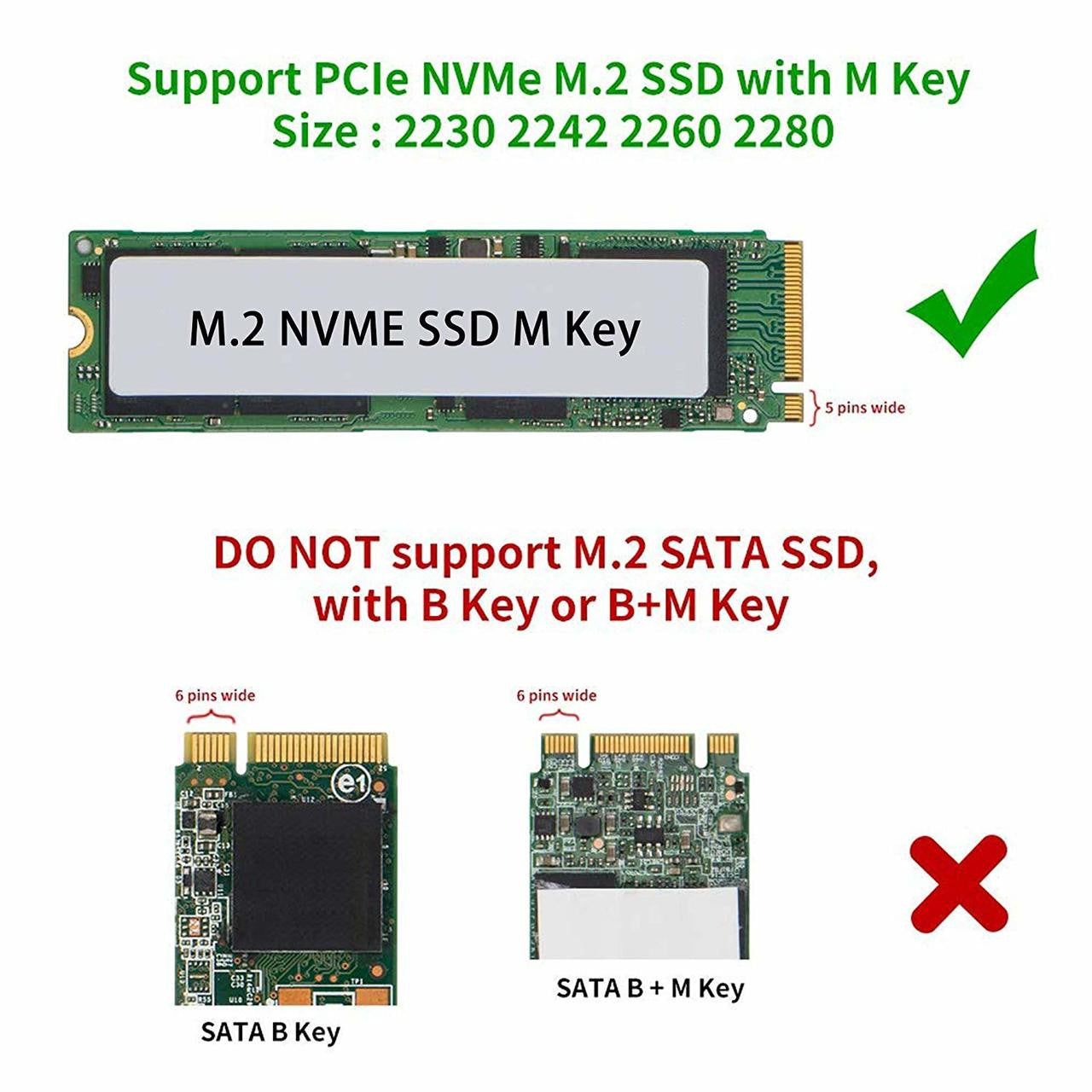

• Supports 2242 / 2260 / 2280 NVMe PCIe M.2 M SSDs up to 2TB
• Supports high (double-sided) and low (single-sided) profile form factors
• Grooved fin heat-sink design reduces overheating and thermal throttling
• JMicron JMS583 bridge controller

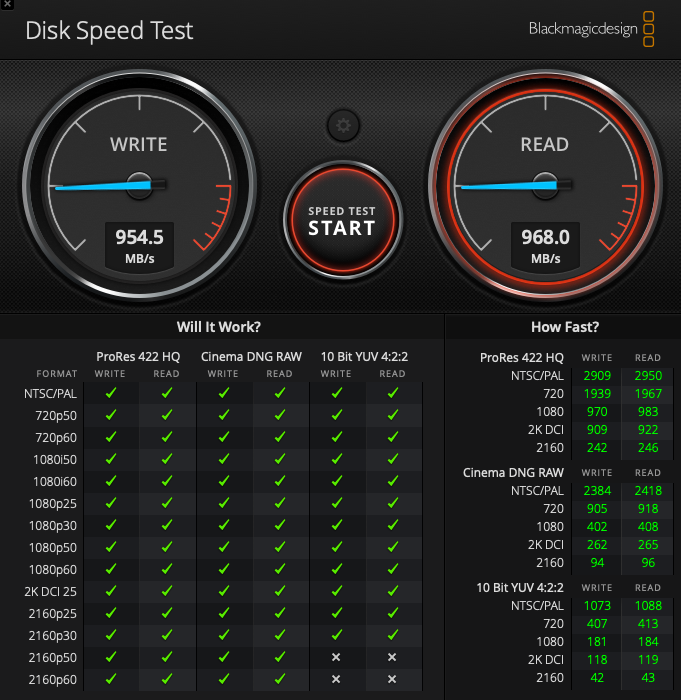

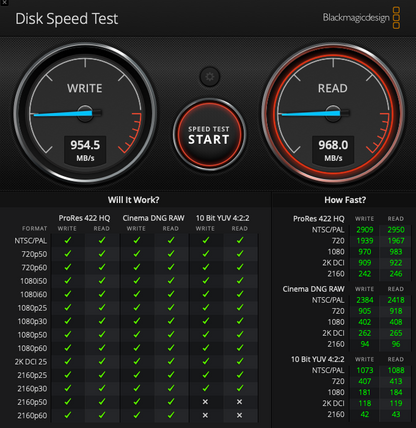

• USB-C 3.2 Gen 2 (10Gbps) speeds
• USB 3.0 and USB 2.0 compatible
• USB Attached SCSI Protocol (UASP) support
• Bulk-only transfer (BOT) support
• TRIM support
• Fully bus-powered
• No driver installation required
• Plug and play
• Hot swappable
• Supports 3.3V I/O
• Embedded 5V to 1.0V voltage regulator
• Embedded 5V to 3.3V linear voltage regulator (LDO)
• Includes one USB-C 3.2 Gen.2 to USB-C 3.2 Gen.2 cable
• Compatible with PC, Mac, Linux, iOS, and Android
• Press the button to release and open the enclosure; no tools required.

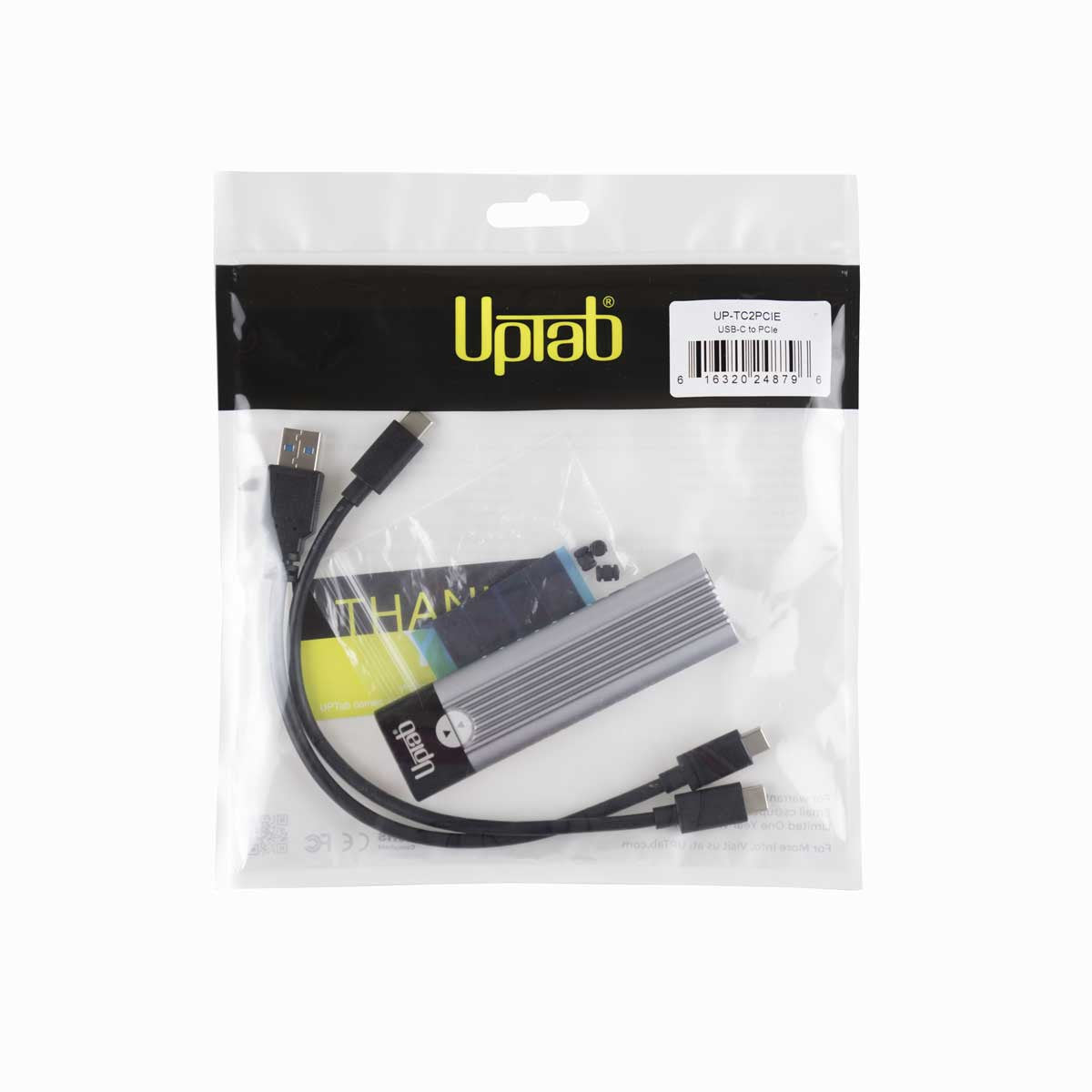

In The Box:

• 1x UPTab USB-C (Type-C) 3.2 Gen 2 to M.2 PCI Express SSD External Enclosure Adapter
• 1x USB-C (Type-C) Gen 2 to USB-C (Type-C) Gen 2 Cable
• 1x USB-A Gen 2 to USB-C (Type-C) Gen 2 Cable
• 2x Thermal Pads



Thermal Pads:

Apply thermal pads to the NVMe (SSD) to prevent speed throttling when moving/copying large files. To help maintain performance, we recommend allowing for plenty of airflow around the enclosure. Please be careful when handling the USB-C NVMe Adapter after extended use; the aluminum cover may be quite warm to the touch.
